Thermo Plastic Road Marking Paints


Pakaims Prism is a barand of Road Marking Paint Manufacturers and Suppliers. Providing Thermoplastic Paint (TP Paint), is a high quality road marking material based on hydrocarbon and natural resin, which gives strong weather and wear resistance. The product provides excellent adhesion and its thicker film gives long life than any other road paint.
Pakaims Prism Thermoplastic Paint (TP Paint) is manufactured conforming to specification AASHTO 249 and BS 3262: Part 1/1989.

Technical Data

Conforming to British Standard (BS) 3262
Color White Yellow
Density 1.94 1.97
Flash Point >230°C >230°C
Softening Point >65°C >65°C
Drying Time 4 minutes at 30°C 4 minutes at 30°C
Pigment Type Titanium dioxide Lead Chromate
Binder 18-22% by weight 18-22% by weight
Luminance Factor More than 70% More than 60%
Mixing Ratio Not applicable Not applicable
Coverage 3.5 kg/sqm at 1.5 mm thickness 3.5 kg/sqm at 1.5 mm thickness
Solvent Cleaner Not applicable Not applicable
Finish Uniform Uniform

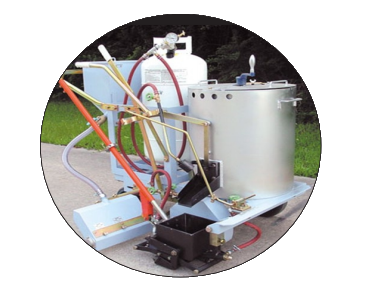

Application By Screed/Spray Machine By Screed/Spray Machine
Glass Beads (Premix) 20% by weight 20% by weight
Packing 25 kg 25 kg


Application Method

1. Asphalt surface must be dry, free from dust, oil and loose materials.

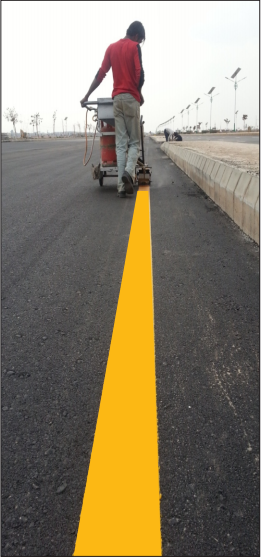

2. Pakaims Prism thermoplastic paint can be applied by screed application at 190°C ± 10°C and spray application at      210°C ± 10°C. Special marking can be applied manually.

3. Pakaims Prism TP is heated at 190°C ± 10°C in a pre-heater (Boiler).

4. Pakaims Prism TP bags are to be put into the boiler one by one, so the material is melted and mixed properly. The material is allowed to mix for few minutes at temperature of 180°C ± 10°C to give flow able viscosity, before shifting it to application machine.

5. Spray glass beads over the fresh hot marking @ 400-500 gm/sqm.


Storage & Packaging :

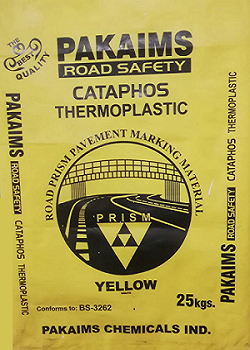

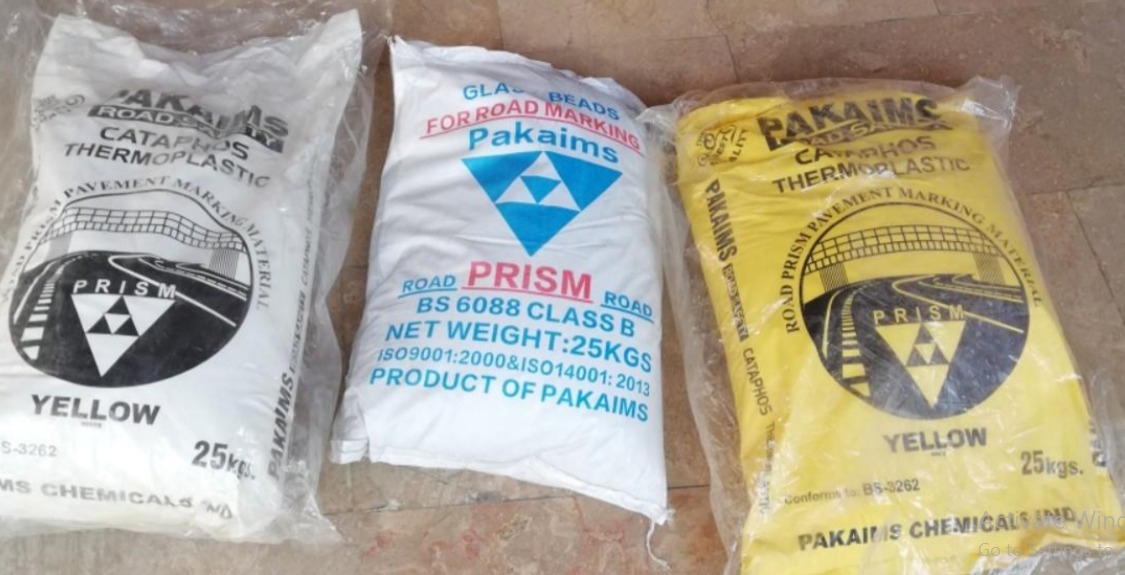

Packing available in 25 kg HDPE bags.
Store under dry, shaded place to attain minimum shelf life of 12 months.


Safety :

Avoid contact with skin, eyes or inhalation while handling material.
Use protective clothing, gloves, masks, goggles etc. to avoid burn.
No smoking, no flame, or sparking near the kettle.
Environmentally safe No VOC.


Thermo Plastic Road Marking Paints

We started manufacturing thermoplastic materials in 2003 with a production capacity of about 10 tonnes per day, which gradually increased as demand grew.We pro-actively planned for further growth. Now we have fully automated plant where we are producing 50 tonnes per day which utilises 70% of our installed production capacity. With no bottle - neck constraints we can immediately increase our production to 100 MT per day if require.

Research & Development and Quality Standards

Our presence in the Industry for past many years has helped us to develop our brand on technical front. In the manufacturing of our products we follow the major quality standards of the world including MORTH 803.4, BS-3262, BS EN1871 and AASHTO M249.

As mentioned above, we have the ISO 9001 : 2015 certification. Products manufactured by our company meet the quality standards of BIS. We believe that consistency of quality products can only be achieved by process orientation. In Pakistan the Pakistani Roads Congress (IRC) and the Ministry of Road Transport and Highways(MORTH) have laid down the standards for Road Marking, we also manufacture our product as per major International Standards like BS (British Standards), AASHTO (American Association of State Highway and Transportation Officials), BS EN (British Standards – European Union), and export it to International markets. We at Pakaims Paints follow the best international practices & standards for Road Marking. We capitalize on our experienced management team and our dedicated workforce.
